Xilin

Xilin 4,400 lbs, 189" Lift, 48V Lithium Electric Forklift CPD20SA-20-Li-189

SKU CPD20SA-20-Li-189
$38,560.00
$37,200.00
$38,560.00
$37,200.00

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Fresh Edge Industrial, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@freshedgeindustrial.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

Product Description

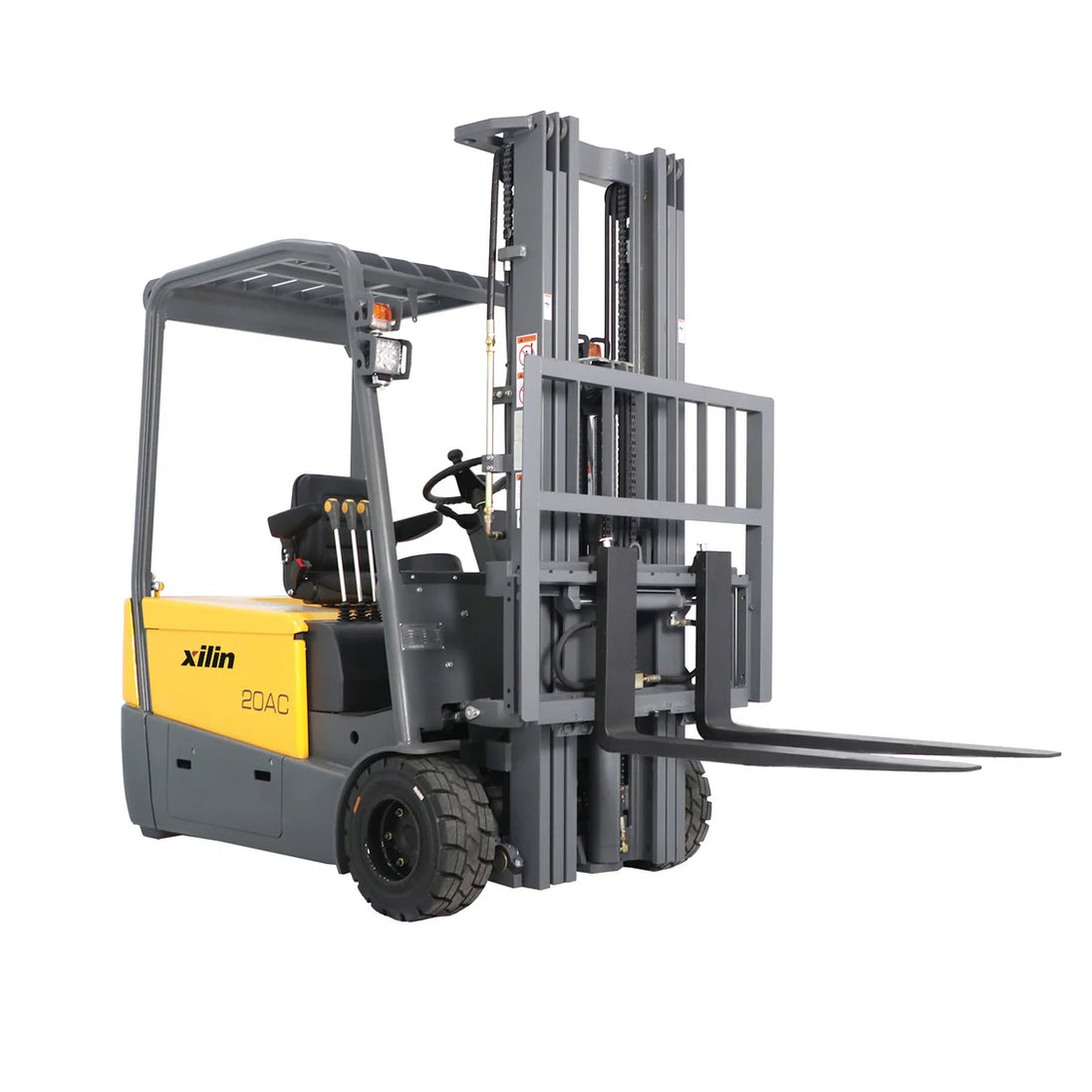

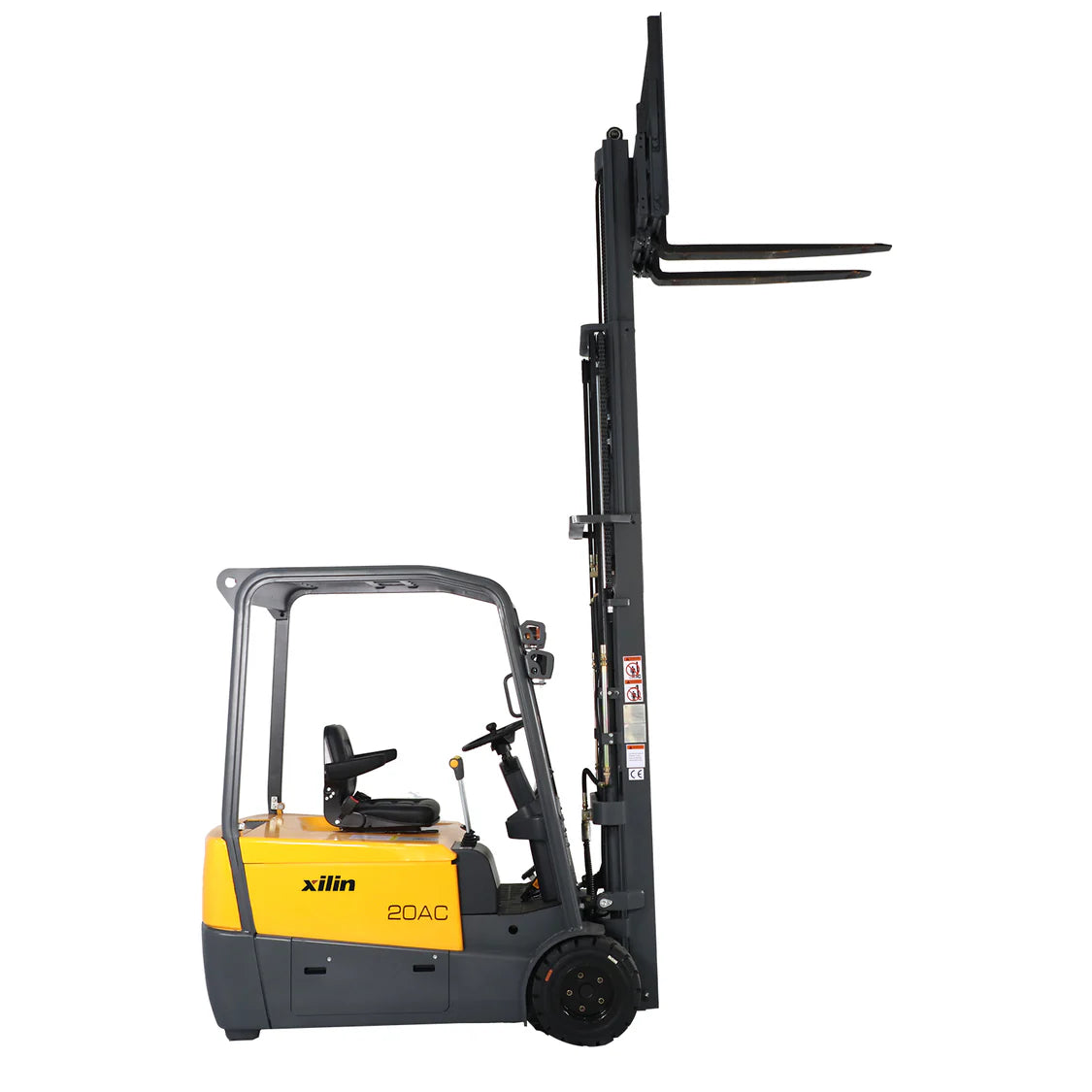

CPD20SA-20-Li-189 Electric Forklift

The CPD20SA-20-Li-189 is a 4,400 lb capacity electric counterbalance forklift equipped with a 48V/450Ah lithium battery, regenerative braking, and a 189" lift height. Built with an imported AC drive system and wet disc brake, this model delivers smooth acceleration, powerful lifting, and responsive braking. Ergonomic controls and integrated safety features make it ideal for industrial, warehouse, and logistics operations.

đź’ˇ Key Features & Benefits

  •  Imported Core Components – Includes drive axle, multifunction LCD panel, and AC control system for stable performance.
  •  Regenerative Braking – Automatically recharges battery while braking; no pedal needed, reduces energy use.
  •  48V/450Ah Lithium Battery – Delivers extended run time with rapid charge capabilities via 48V/150A charger.
  •  3-Speed Driving Modes – Easily switch between slow, medium, and fast speeds to suit various working conditions.
  •  Wet Disc Brake System – Durable under heavy use; suitable for rough or outdoor surfaces.
  •  Fully Adjustable Cabin – Steering wheel and seat can be customized to driver’s needs, reducing fatigue.
  •  Integrated Signal & Light Controls – Intuitive toggle system ensures fast access while driving.
  •  ABS Dashboard & Imported Gauges – Clean layout with side-mounted instruments and enhanced forward visibility.
  •  Emergency Cutoff Lever – Positioned next to the seat for quick shutdown in case of danger.

đź“Š Specifications

 Load Capacity 4,400 lbs
 Load Center 19.7"
 Turning Radius 65"
 Aisle Width 130"
 Fork Dimensions 42" L × 9.45–42.8" W × 1.6" Thick
 Inside Fork Width 0.1–33.3"
 Fork Lowered Height 0.1"
 Overall Width 44.5"
 Overall Length 122"
 Max Lifting Height 189"
 Mast Height (Lowered/Extended) 86.6" / 228.4"
 Battery 48V / 450Ah Lithium
 Charger 48V / 150A External
 Travel Speed (L/U) 8 / 8 mph
 Lifting Speed (L/U) 9.8 / 16.5 inch/s
 Lowering Speed (L/U) <23.6 / <23.6 inch/s

🔎 Designed for Daily Use, Backed by Real Experience


🔧 Lithium Forklift with 4,400 lb Capacity and 189" Lift

The CPD20SA-20-Li-189 is a compact electric counterbalance forklift with a 4,400 lb load capacity and 189" maximum lift height. It runs on a 48V / 450Ah lithium battery and features rear-wheel drive, an imported AC motor system, and regenerative braking—built for indoor warehouses and high-bay stacking operations.

⚙️ High-Efficiency Drive & Braking System

This model uses a rear-wheel drive layout with imported AC traction motor. Regenerative braking is triggered automatically when decelerating. A wet disc brake ensures smooth and consistent stopping. The hydraulic steering system delivers light, precise handling even under full load.

🔋 Lithium Battery with External Charging

The 48V / 450Ah lithium battery supports side-pull operation for easy maintenance. Charging is done via a 48V / 150A external charger (included). A smart LCD screen on the dashboard displays real-time battery status, operating hours, speed, and fault codes.

🧯 Operator Safety & Comfort

Safety features include a seat switch lockout, emergency power cut-off, brake light, LED work lights, horn, and reverse buzzer. The operator compartment includes anti-slip pedals, wide visibility mast, and ergonomic hydraulic levers for lift and tilt.

🛠️ Routine Maintenance Guidelines

Check hydraulic oil (ISO VG46) every 1,200 hours. Grease mast rollers and steering joints every 100 hours. Inspect brake pedal response and battery terminal condition weekly. All core components are accessible via removable steel covers for easy service access.

🛡️ Warranty & Support You Can Count On

All new Xilin lithium forklifts include a 1-year limited warranty covering the powertrain, controller, and hydraulic system. The lithium battery is covered for 6 months. Wear parts are covered for 3 months.

Here’s how our support works:

  • Within 30 days: Free parts, remote support, and round-trip shipping if needed
  • Day 31 to 1 year: Free parts and remote tech help; customer pays 50% return freight
  • After 1 year: Lifetime support; parts and freight billed as needed

Questions? Contact support@freshedgeindustrial.com — our team is here to help.



The CPD20SA-20-Li-189 is a powerful 4,400 lb electric forklift with 189" lift height, 48V lithium battery, and regenerative braking system. Built for warehouse and logistics applications, it delivers long-lasting power, tight turning radius, and precise control for high-stack material handling.
