DESCRIPTION

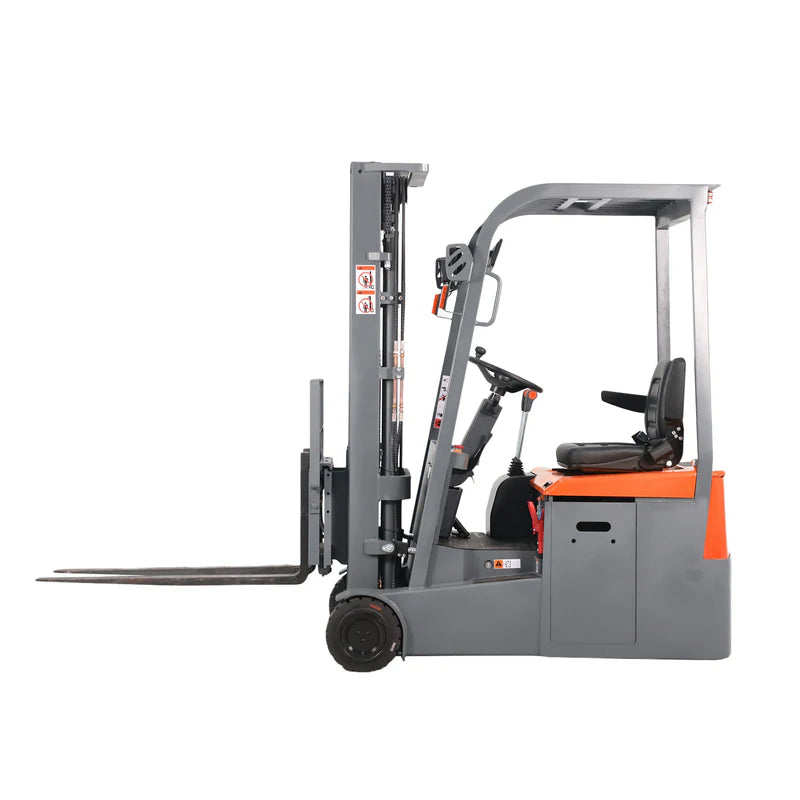

CPD15SE-197 Electric Forklift – Powerful Performance in Tight Spaces

The CPD15SE-197 is a three-wheel electric forklift designed for narrow aisles and precision tasks. It delivers 3,300 lbs of lifting power and reaches up to 197" in height. With a side-load battery, free-lift mast, and AC drive motor, this model provides smooth operation, enhanced visibility, and quiet performance—ideal for warehouses and distribution centers.

 Key Features & Benefits

  •  Hydraulic Power Steering – Easy maneuverability with steering priority function, reduces operator fatigue in long shifts.
  •  Side-Load Battery Access – 24V / 320Ah high-capacity battery with convenient side pull-out for quick replacement.
  •  LED Lighting System – Integrated front and rear lights ensure safe operation in low-light environments.
  •  AC Drive Technology – Provides strong torque, better energy efficiency, and reduced maintenance.
  •  Free-Lift Mast & Side Shifter – Precision load positioning with optional attachments for different working scenarios.
  •  All-Rubber Wheels – Designed for both indoor and outdoor use, ensuring shock absorption and reduced noise.
  •  Steel-Covered Chassis – Durable and resistant to impact, built for long-term industrial use.

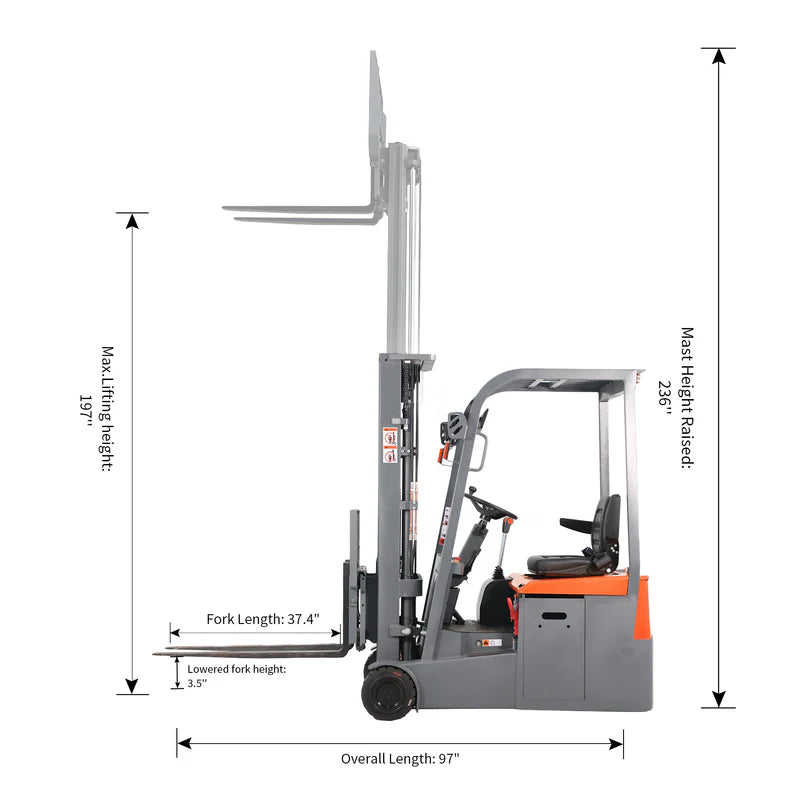

Specifications

 Capacity 3,300 lbs
 Load Center 19.7"
 Turning Radius 61"
 Aisle Width 124"
 Fork Dimensions 37.4" L × 8.7–26.7" W × 1.3" Thick
 Inside Fork Width 0.7"–18.9"
 Fork Lowered Height 0.1"
 Overall Width 41.5"
 Max Lifting Height 197"
 Mast Height (Lowered/Extended) 97" / 236"
 Travel Speed 4.3 mph (Laden / Unladen)
 Lifting Speed 3.9 in/s / 5.9 in/s
 Lowering Speed <15 in/s (Both Laden / Unladen)
 Battery 24V / 320Ah
 Charger 24V / 40A External



 Designed for Daily Use, Backed by Real Experience


🔧 Compact 3,300 lb Lithium Electric Forklift – 197" Lift

The CPD15SE-197 is a compact three-wheel electric counterbalance forklift with a 3,300 lb load capacity and a maximum lift height of 197 inches. Designed for indoor and outdoor use, it offers tight turning, stable load handling, and energy-efficient performance with a 24V / 250Ah lithium battery.

⚙️ Rear-Wheel Drive & Power Steering

This model features rear-wheel drive and electric hydraulic power steering for agile movement in tight spaces. It’s equipped with:

  • High-torque AC drive motor with regenerative braking
  • Electric brake system with safe hill-hold control
  • Rubber tires for indoor/outdoor traction
  • Heavy-duty metal plate cover for durability

Ideal for warehouse docks, production floors, or narrow lane logistics.

🔋 Lithium Battery with Side-Pull Design

The CPD15SE-197 uses a 24V / 250Ah lithium battery that supports side extraction for fast replacement or maintenance. A digital display on the dashboard shows battery status, working hours, and fault codes in real time. Optional external chargers available upon request.

🧯 Operator Controls & Safety Features
  • Hydraulic lift/tilt via hand levers with smooth proportional control
  • LED lights and reverse buzzer for improved visibility
  • Emergency stop switch located near dashboard
  • Seat switch with safety lockout
  • Electronic brake lock when key is off or seat is empty

Fully compliant with warehouse safety standards.

🛠️ Routine Maintenance & Service Access
  • Battery access via side-pull tray or lifting handle
  • Inspect brake clearance, tires, and steering joints every 50 hours
  • Grease mast rollers and pivot points every 100 hours
  • Check oil level in hydraulic tank monthly (VG46 recommended)
  • Review dashboard error codes before shift use

Service panels open from the top and side for easy technician access.

🛡️ Warranty & Support You Can Count On

All new Xilin electric forklifts include a 1-year limited warranty covering the powertrain, electronics, and hydraulic system. The lithium battery is covered for 6 months. Wear parts (tires, seals, brushes) are covered for 3 months.

Here’s how our support works:

  • Within 30 days: Free parts, remote support, and round-trip shipping if needed
  • Day 31 to 1 year: Free parts and help; customer pays 50% return freight
  • After 1 year: Lifetime remote support; parts and shipping quoted as needed

Questions? Contact support@freshedgeindustrial.com — our team is here to help.



The CPD15SE-197 is a 3,300 lb three-wheel lithium forklift with a 197" lift height, perfect for high-bay stacking, indoor-outdoor use, and tight-space maneuvering. With side-pull battery access and responsive electric controls, it’s built to keep your workflow moving.
